ARAMA D.O.O. MAJDANPEK

Wholesale of copper pipes for various purposes...

The best offer for copper pipes

founded in 2008

Our Products

In accordance with the production program, copper pipes are manufactured with an outer diameter ranging from 5 to 76 mm and a wall thickness from 0.35 to 2.50 mm, available in the following qualities: soft, semi-hard, and hard.

Soft Copper Pipes

Condition designation: R220

Semi-Hard Copper Pipes

Condition designation: R250

Hard Copper Pipes

Condition designation: R290

Copper Pipes

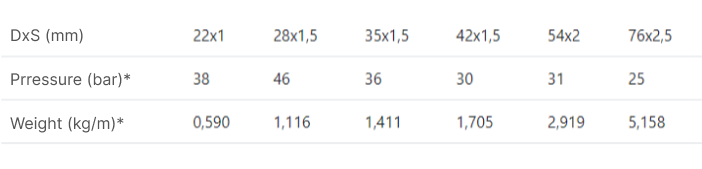

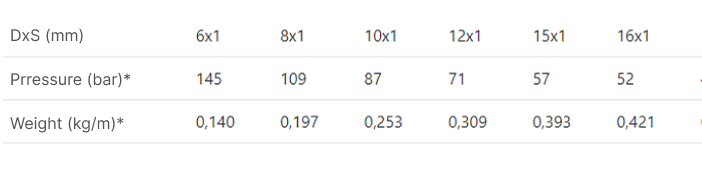

Dimensions, allowed pressures, and weights

DxS (mm)	6x1	8x1	10x1	12x1	15x1	16x1	18x1	22x1	28x1,5	35x1,5	42x1,5	54x2	76x2,5
Pressure (bar)*	145	109	87	71	57	52	48	38	46	36	30	31	25
Weight (kg/m)	0,140	0,197	0,253	0,309	0,393	0,421	0,477	0,590	1,116	1,411	1,705	2,919	5,158

For each dimension of copper pipes, the calculation of weight and the maximum allowed fluid pressure is done using the following equations:

For weight:

Q = (D-S) x S x π x γ, gr/m

D - external diameter of the pipe, mm
S - wall thickness of the pipe, mm
π - 3.14
γ - specific weight of copper, 8.94 kg/dm³

For pressure:

P = 200 Rm x S / D x N, bar

200 - conversion constant
Rm - tensile strength, N / mm²
S - wall thickness of the pipe, mm
D - external diameter of the pipe, mm
N - safety coefficient (5)

Copper pipes - mechanical properties according to EN 1057

Delivery condition	Condition designation	Tensile strength (N/mm²)	Elongation (%)	Hardness HV5
Soft	R220	min. 220	40	40 - 70
Half-hard	R250	min. 250	30	75 - 100
Hard	R290	min. 290	3	min. 100

Delivery forms and packaging method

Condition designation	External diameter of the pipe (mm)	Wall thickness of the pipe (mm)	Delivery form	Packaging method
R220	5-22	0.5-2.0	coil, 25 and 50m	In cardboard boxes, on pallets
R220	6-20	0.5-1.0	LW spool, weight 120 - 160kg	On cardboard spool, on pallets
R220	5-76	0.5-2.5	Straight length up to 6m	In wooden crates
R250, R290	5-76	0.5-2.5	Straight length up to 6m	In bundles wrapped in plastic foil

LWC Packaging

Coil packaging

Packaging in bundles

Ordering Copper Pipes

In order to communicate more efficiently between you and our company Arama d.o.o., we suggest that when making an inquiry/order, you include the following:

The dimension of the copper pipes (external diameter x wall thickness of the copper pipe),
The length,
The standard (technical requirements),
The condition designation,
The quantity of copper pipes (in meters or kilograms),
The delivery method.

Order

Arama d.o.o. - About Us

The company Arama d.o.o. was founded in 2008 in Majdanpek, and since then, we have seen consistent growth. We operate successfully and with quality, dedicated to our customers, and are becoming a market leader in Serbia in the wholesale trade of copper pipes. We export copper pipes from the Sevojno Copper Rolling Mill to Austria, the Republic of North Macedonia, Croatia, and Germany.
